Jacketed Ball Valve

Salient Feature

Usmani Valves Make Jacketed valve manufacturers, suppliers, exporters, wholesalers in Mumbai, Thane, India to all over the Ball. Jacketed valves manufacturer according certified international specifications and ISO standards from last four decades with required industrial .

characteristics and features to delivered more than expected performance, functions and operation as well as long lasting, less maintenance and efficient

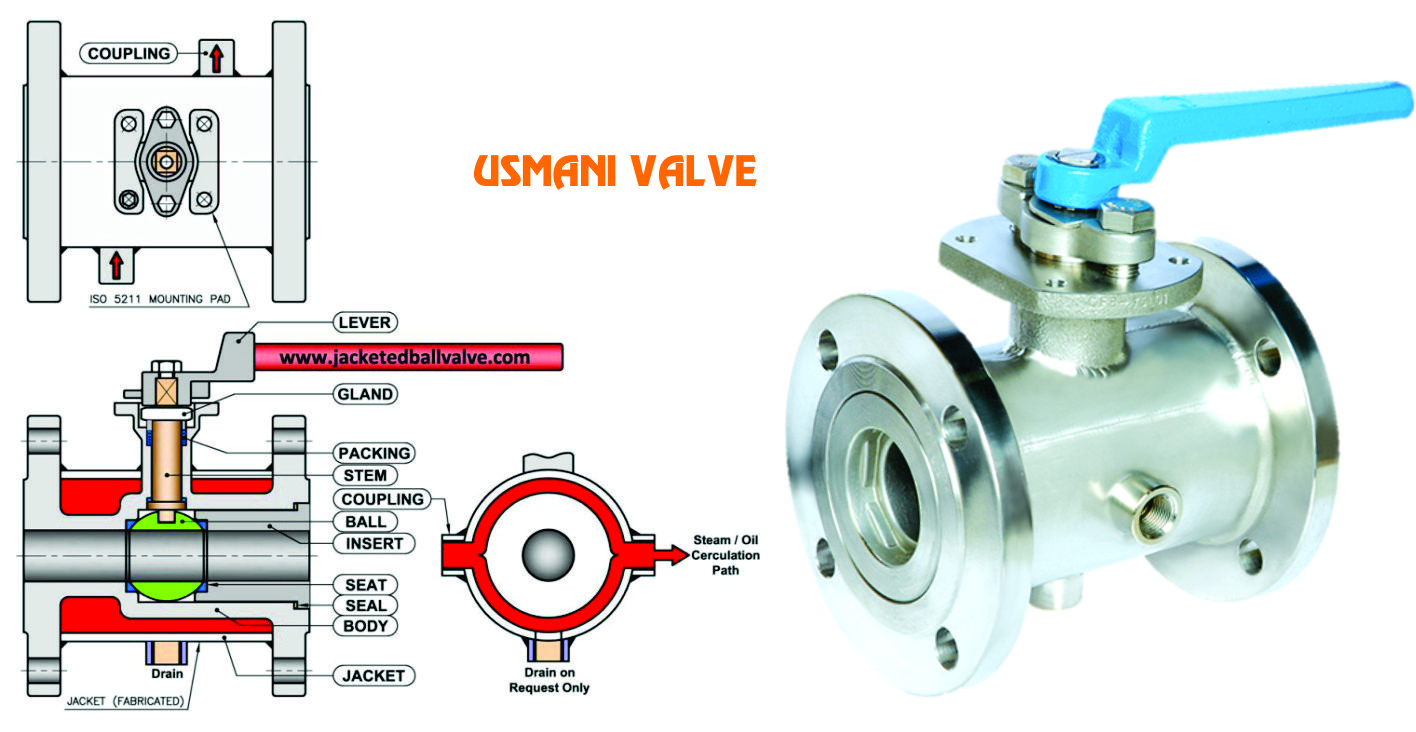

Single Piece Design Regular (Reduce) Bore Fully Jacketed Ball Valve
Flanged End Connection Hand Lever / Gear / Pneumatic Operation
  • High Performance Ball Valve
  • Longer Life
  • Positive Shut off
  • Quick in Action
  • No Lubrication
  • Compact Design
  • Low Pressure Drop
  • Simplicity
  • Heating / Cooling Jackets
  • Wide selection of Different Jacket Material

  • Design & Testing International Standard:
    Valve Design: BS 5351 / ANSI B 16.34 / API 6D
    Pressure Testing : BS 6755 Part II / API 598 / API 6D
    Face To Face : As Per ANSI B 16.10
    Flange Drilling : ANSI B 16.5 / BS 10 Table / DIN / IS 6392
    Size Range : ½" x 1" To 8" x 10"
    Material of Construction:
    Body / Insert: Cast Carbon Steel to ASTM A 216 GR. WCB
    Stainless Steel to ASTM A 351 GR. CF 8 / 8M / 3 / 3M
    Ball: Stainless Steel to ASTM A 351 GR. CF 8 / 8M / 3 / 3M
    Stem: AISI 410 (S.S. 410 13% Cr. Steel)
    AISI 304 (S.S. 304)
    AISI 316 (S.S. 316)
    AISI 304L (S.S. 304L)
    AISI 316L (S.S. 316L)
    Ball Seat / Gland Seal / Stem Seal: P.T.F.E. Virgin
    P.T.F.E. Glass Filled
    P.T.F.E. Carbon Filled
    Jacket Material: M.S.
    S.S. 304, S.S. 316, S.S. 304L, S.S. 316L
