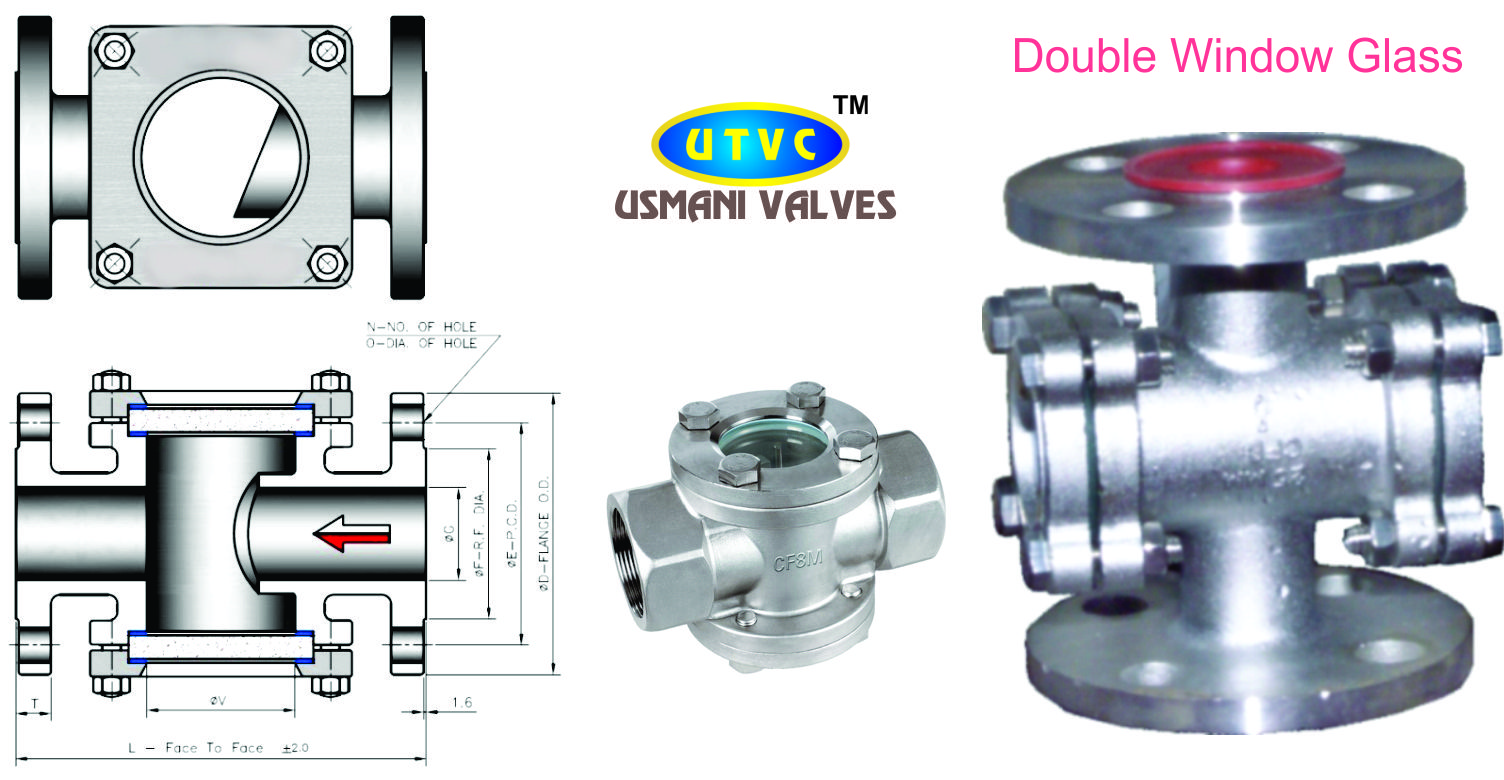

Double Window Sight Glass

Salient Feature

UTVC make Sight Flow Indicators Which Are Most Commonly Used for Monitoring Liquid Flow in Pipelines without Compromising the Integrity of the Piping System. Visual Observation And Supervision Of The Process Flow Stream Are Two Of The Main Concerns. Single, Double Window Constructions, Sight Flow Indicators Are Available In Various Figures & Material. CS, SS Made Bodies with Toughened Borosilicate Glass Windows and Standard Units In Flanged.

Threaded Connections Provide Immunity At Higher Temperature & Pressures. These Offer A Quick, Reliable And Inexpensive Way To Affirm Flow Rate And Direction, And Monitor Color And Clarity In Fluid Lines.

Application:

The Basic Applications Of Sight Flow Indicators Are Spread Across Several Industries And Include Measuring Levels Of Water, Condensate, Coolant, Diesel, Solvent, Chemicals, Alcohol, Lube Oil, Juices, Pharmaceuticals plant. Sugar industries, Textile mills. Etc.

Specification:

Design Temperature: Up to 200°C depending upon the type
Design Pressure : Up to 20 Kg/cm² depending upon the type
Line Size: Up to 400 NB depending upon the type
Material: Cast Iron, CS WCB,CF8 304,CF8M 316,MS.and PP,PFA,PTFE Lined
Connection: Flanged, Screwed BSP/NPT/Butt Weld
