Ball Valves Bar Stock 6000

Salient Feature

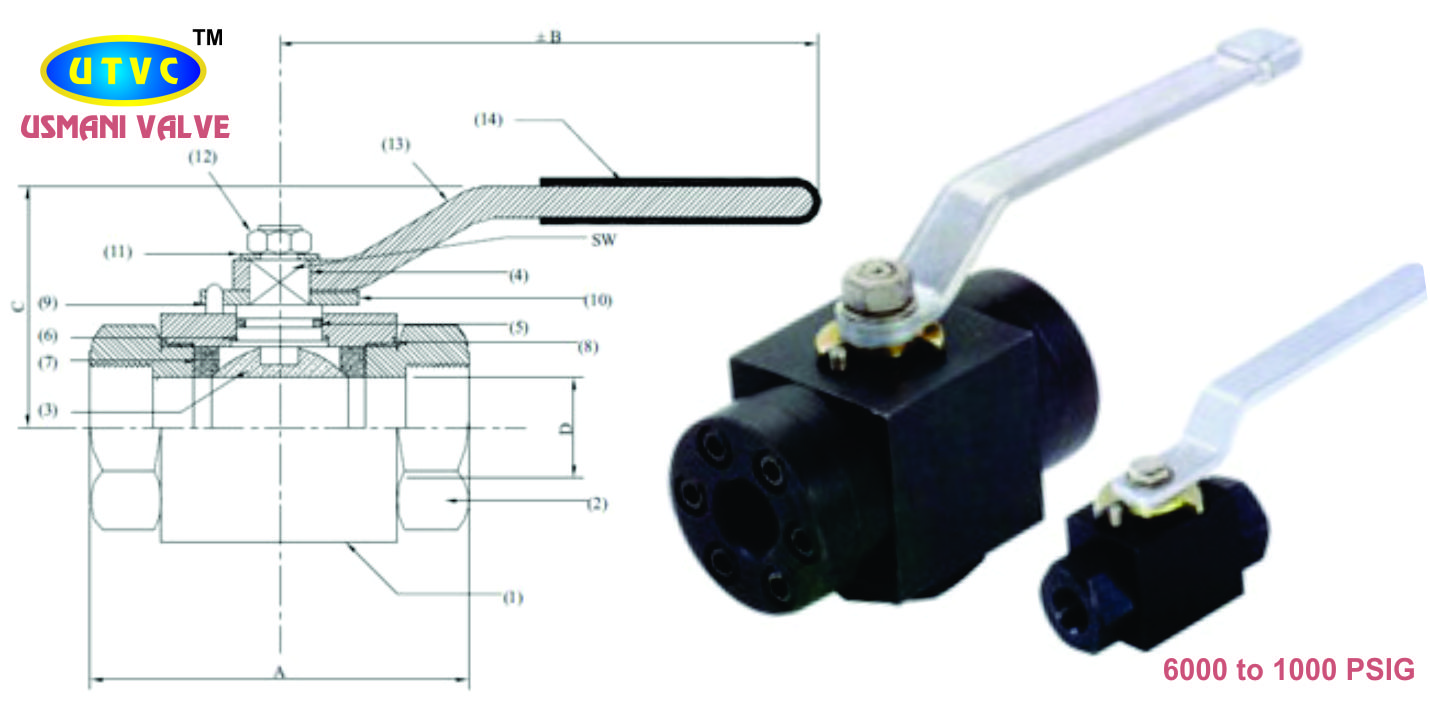

UTVC Make Ball Valve Three Piece High Pressure Bar Stock 6000 PSIG

Treatment, Paper & Sugar Industries
Design Three Piece Ball valve blow out proof stem design
Material CS A 105, LF2. F22, CF8, CF3,CF8M, CF3M etc.
Ball & trims SS 304,316,
Seat PTFE, GFT, CFT ,PEK
Action Manual, Lever
Rating 1000,2000, 3000, 5000, 6000, 10000 PSI
Ends conn. Screwed ends, BSPT,NPT Socket weld , Butt weld
Size ¼” to 2”
Port Full & Reduce
Temp. Temperature Range:-4 to 356 °F (-20 to 180 °C
Mfg. BS 5351
Testing API 598 / BS 6755
Application Air, Gas, Water, Chemicals, Pharma, Oil, Acid, Foods, Vacuum, Heat
