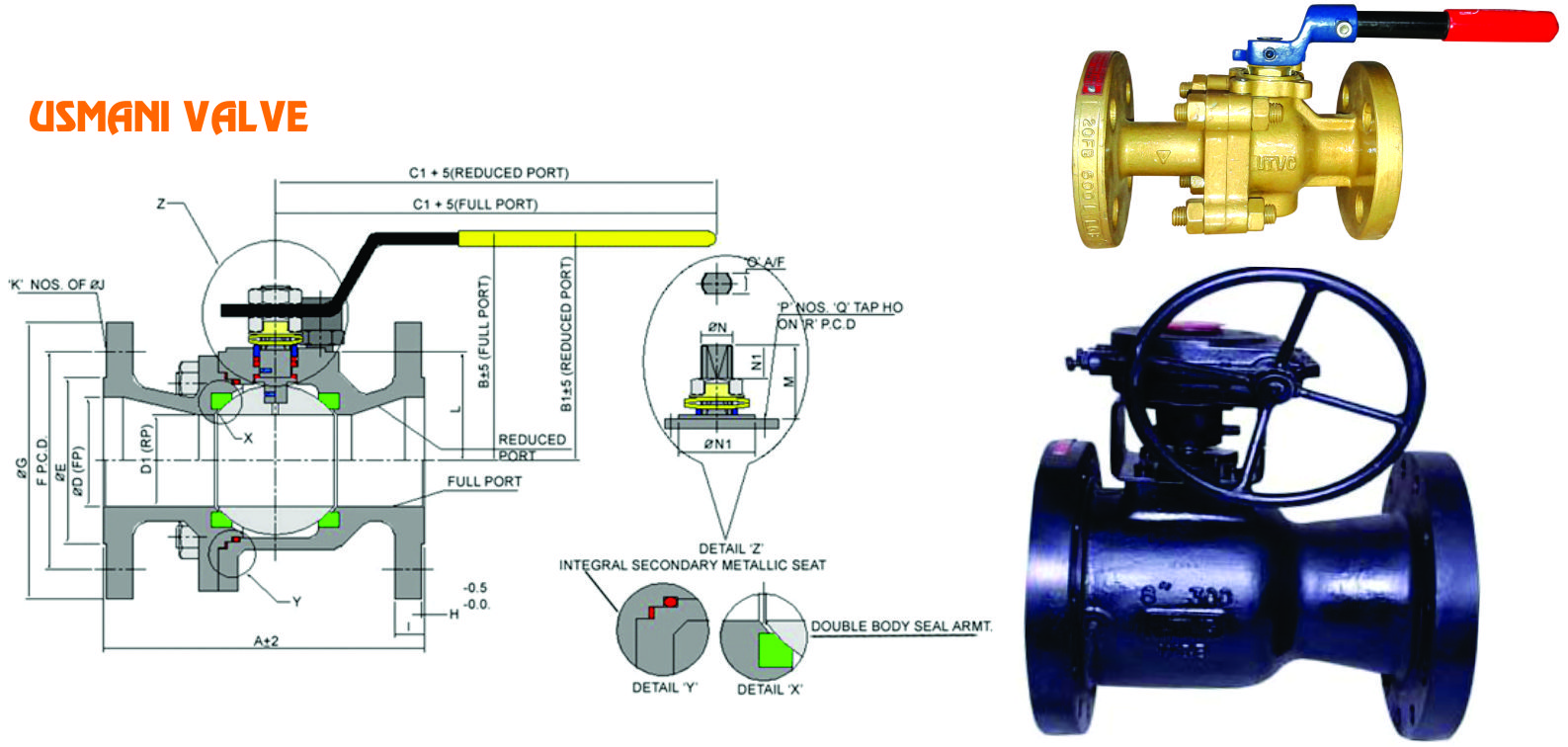

Fire Safe Design Ball Valve

Salient Feature

Usmani Valves Co. PVT LTD We manufacture, supply and export Ball Valve Single Piece and two piece Fire Safe Design. Our Ball Valve Single Piece Fire Safe designs and manufactures products that are used to reduce facility

damage and insurance costs, while protecting the safety for the plant's employees and the surrounding suburbs .

The manufactured products that are portrayed here, includes fire safe fusible link assemblies for emergency shutdown, spring return handles that shut the valves off automatically in case of fire or people forget to shut the valves, and lock-out devices for both automated and manual valve

Specifications
  • Design: Ball Valve Single Piece Without Fire Safe Blow out proof stem construction
  • Ball & trims : SS 304, 304L,316,316L
  • Material: ASTM A 216, WCB, CF8, CF8M, 316L etc.
  • Seat: PTFE, GFT, CFT
  • Rating: ASA 150#,300#.600#,900#
  • Action: manual, lever & pneumatic actuator
  • Ends conn. : screwed ends, socket weld, but weld
  • Mfg. : 5351/B16.34 /API 6D-ISO 14313/ API 609/MSS SP 72
  • Port: full & reduce
  • Application : Oil & Gas, Petrochemical Industries, Chemicals, Acid, Steam, foods, vacuum, heat treatment, Paper & Sugar industries
  • Testing: API 598 / BS 6755
  • Color: Black, Green, Grey, Sky Blue, White
  • Type: Single Piece and two piece Ball Valve
  • Size: 100-150mm, 150-200mm, 200-250mm, 250-300mm, 300-350mm, 350-400mm
  • Application: Gas Fitting, Oil Fitting, Water Fitting
  • Pressure: High, Low, Medium
  • Brand Name : UTVC
  • Certification: ISO 9001:2008 Certified
  • ISO 5211 Mounting Pad
  • API 607 5th Edition Tested &
  • Temperature Range (RTFE) -20°F to 450°F
  • Maximum working pressure:
  • ANSI 150: 275 PSI WOG @100 F
  • ANSI 300: 720 PSI WOG @100 F
  • All valves are shell and seat tested to ANSI/ASME B16-34 and APE 598
  • Face to Face ANSI B16-10
