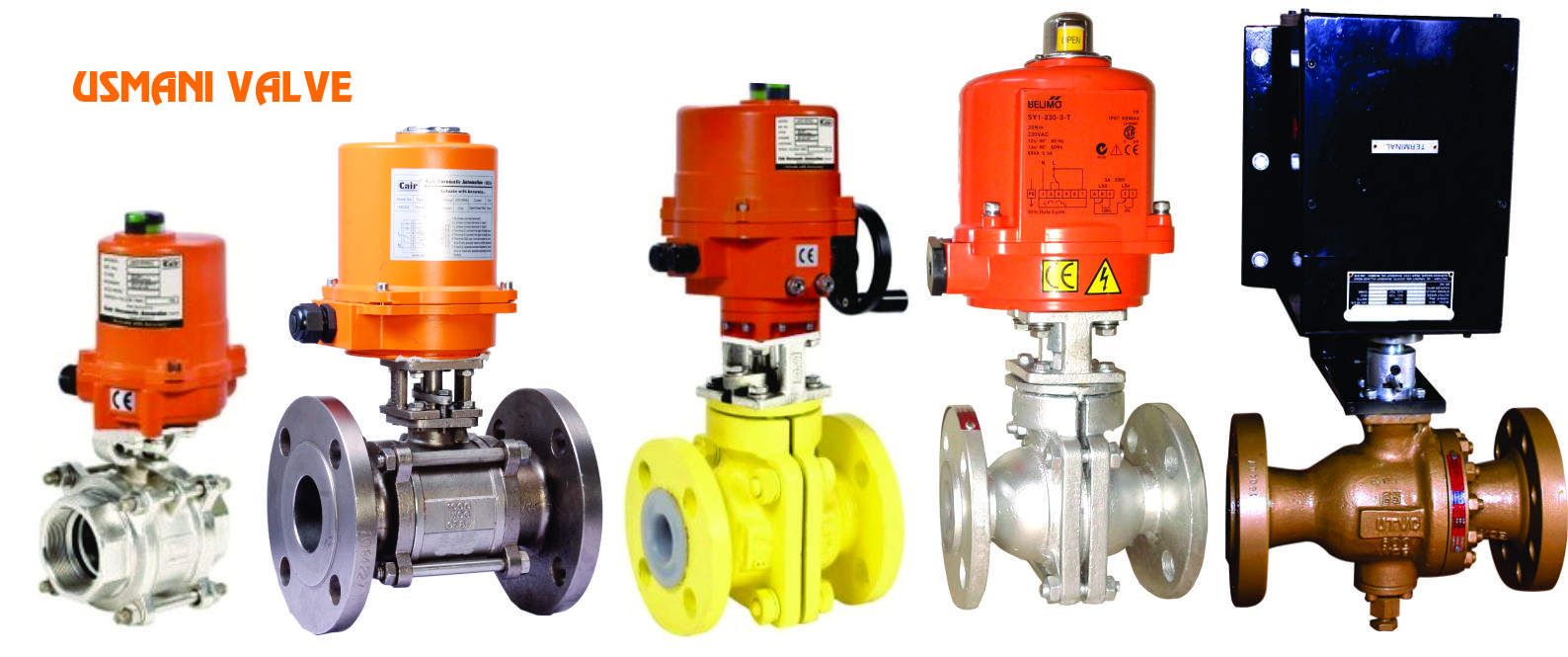

Electrical Actuator Ball Valve

Salient Feature

  • Low Torque - Smaller actuators, reduced costs, space and weight saving
  • ISO 5211 mounting pad
  • Compact Design
  • PFA liner on ALL wetted parts
  • PFA liner is "Locked-in" to body, ball, & stem
  • Full port for unrestricted flow
  • Rugged & versatile
  • Anti-blowout stem
  • Innovative atmospheric seal provides added protection and safety
  • Superior body joint technology
  • Reliable for vacuum services
  • Complete line of accessories
  • Technical Specification
    Lined Ball valve PFA,FEP,PTFE Lined
    Design Mfg. Std.: ASME B16.34, HG/T 3704
    Dimension: ASME B16.10 , GB/T 12221
    Material CS ASTM A 216 Gr. WCB, CF8, CF8M etc.
    Ball & trims SS 304,316
    Seat PTFE, GFT, CFT,PFA,FEP,
    Action Electricals Actuator
    Rating 150#,300#, 1000,2000, PSI
    Ends conn. Flanged end , Screwed end
    Flange Std.: ASME B 16.5 ,GB/T 9119 ,DIN ,JIS
    Size 1” to 6”
    Port Full & Reduce
    Temp. Temperature Range:- ( 180 °C To 230 degree )
    Mfg. BS 5351
    Testing API 598 / BS 6755, GB/T 13927
    Application Air, Gas, Water, Chemicals, Pharma, Oil, Acid, Foods, Vacuum, Heat Treatment, Paper & Sugar Industries
