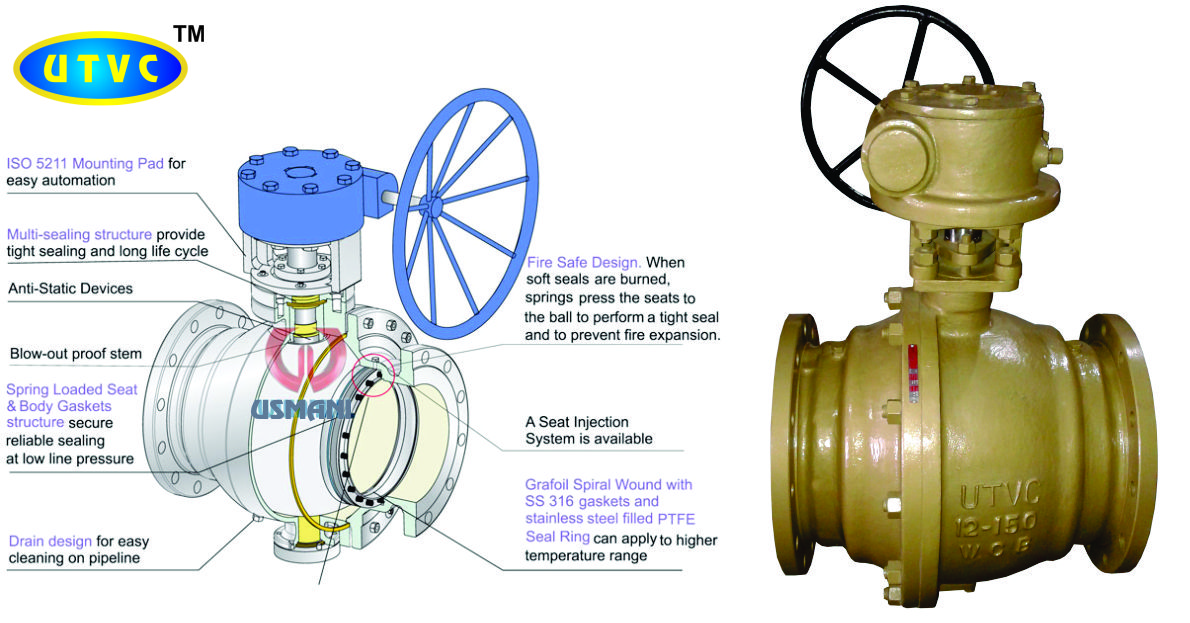

Ball Valve Two Piece Full Bore

Salient Feature

UTVC Ball Valve Two Piece Flanged End Floating type mounting paid

Design Two piece ball valve Fire safe design full bore
Material CS ASTM A 216 Gr. WCB, LCB, LCC, CF8, CF8M etc.
Ball & trims SS 304,304L, 316,316L, monel
Seat PTFE, GFT, CFT
Action Manual, Lever, Gear operated with pneumatic Actuator
Rating ASA 150, 300,
Ends conn. Flanged ends but weld
Port Full & Reduce
Mfg. BS 5351/B16.34 /API 6D-ISO 14313/ API 609/MSS SP 72
Testing API 598 / BS 6755
Application Air, Gas, Water, Chemicals, Pharma, Oil, Acid, Foods, Vacuum, Heat Treatment, Paper & Sugar Industries
