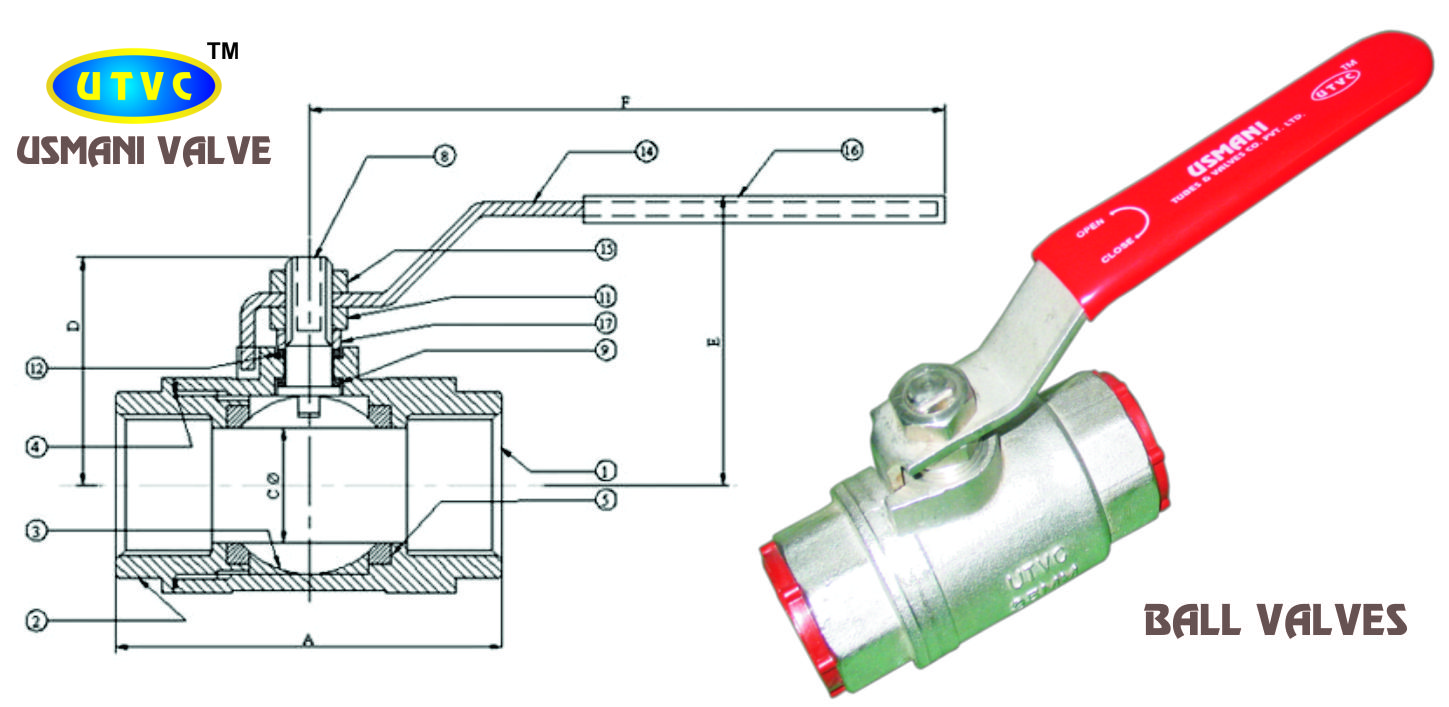

Ball valve One piece WOG 2000

Salient Feature

UTVC Ball Valve One Piece Floating type (investment casting )

Design Three Piece Ball valve blow out proof stem design
Material CS ASTM A 216 Gr. WCB, CF8, CF8M etc.
Ball & trims SS 304,316
Seat PTFE, GFT, CFT
Action Manual, Lever
Rating 1000,2000, PSI
Ends conn. Screwed ends, PSP,BSPT,NPT
Size ¼” to 3”
Port Full & Reduce
Temp. Temperature Range:-4 to 356 °F (-20 to 180 °C
Mfg. BS 5351
Testing API 598 / BS 6755
Application Air, Gas, Water, Chemicals, Pharma, Oil, Acid, Foods, Vacuum, Heat Treatment, Paper & Sugar Industries
