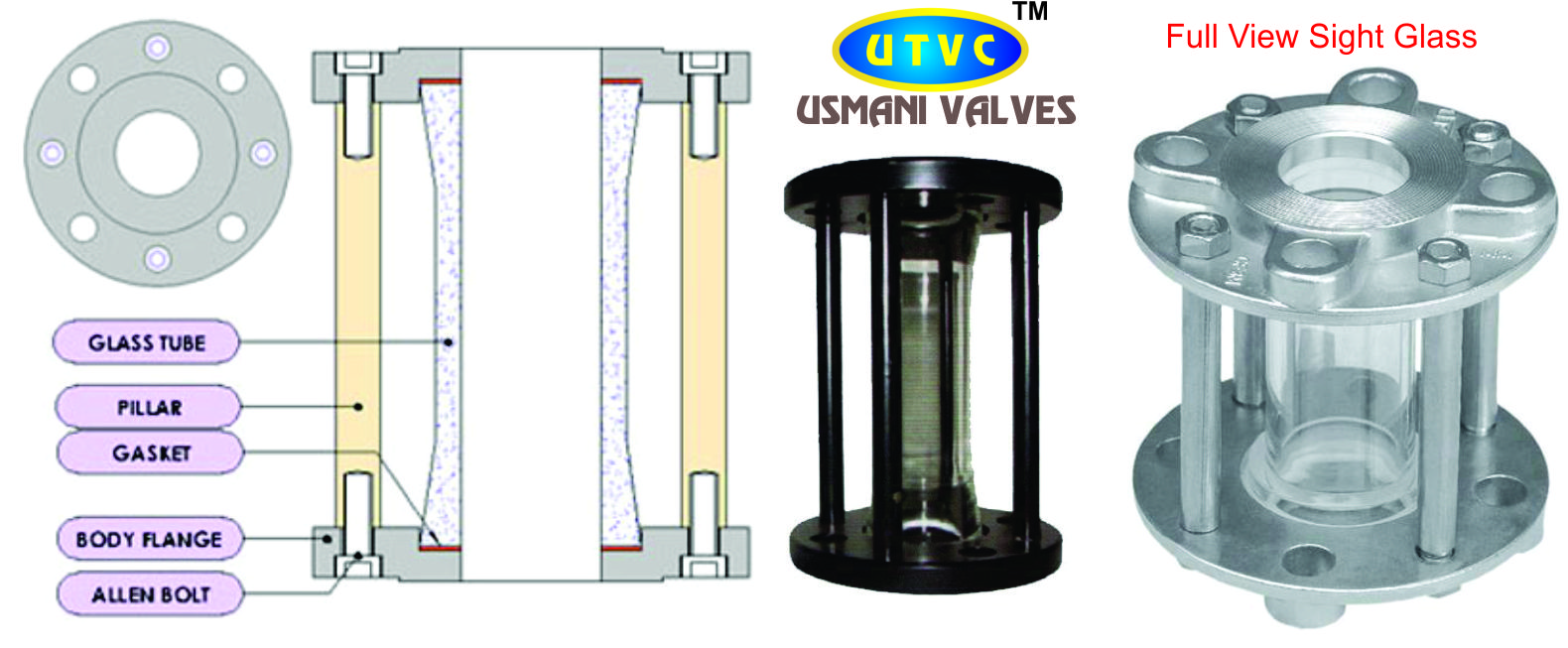

Full View Sight Glass

Salient Feature

Sight Glass Sight Flow Indicators is used for monitoring flow in pipelines for a wide range of applications. USMAN Valves Manufacturing. Sight Glass suitable for various industrial plant applications. These Sight Flow Indicators are bi-directional type and easy to install in any orientation. Sight Glass Sight Flow Indicators provides a quick, reliable and economical way to verify the flow of liquids through industrial process pipelines.

USMANI Sight Glass has been designed with outstanding quality and the feature you need to streamline your operations. Full view types Sight Glass are widely used for corrosive chemicals, acids, and colored liquids. Sight Glass Sight Flow Indicators) are generally used in processes, where spot required to detect the presence of media, or to visual inspect color, clarity, turbidity, or other critical characteristics. Sight Glass can be installed vertically or horizontally in the middle of any kind of non-transparent pipeline and are very convenient & easy to observe the flow from any direction.

Application:

The Basic Applications Of Sight Flow Indicators Are Spread Across Several Industries And Include Measuring Levels Of Water, Condensate, Coolant, Diesel, Solvent, Chemicals, Alcohol, Lube Oil, Juices, Pharmaceuticals plant. Sugar industries, Textile mills, Food Industries Organic Chemical Manufacturing Plant, Polymer Manufacturing Plant. Etc.

Specification:

Design Temperature: Up to 200°C depending upon the type
Design Pressure : Up to 20 Kg/cm² depending upon the type
Line Size: Up to 200 NB
Material: Cast Iron, CS WCB,CF8 304,CF8M 316,MS.and PP,PFA,PTFE Lined
Connection: Flanged, Screwed BSP/NPT/Butt Weld
