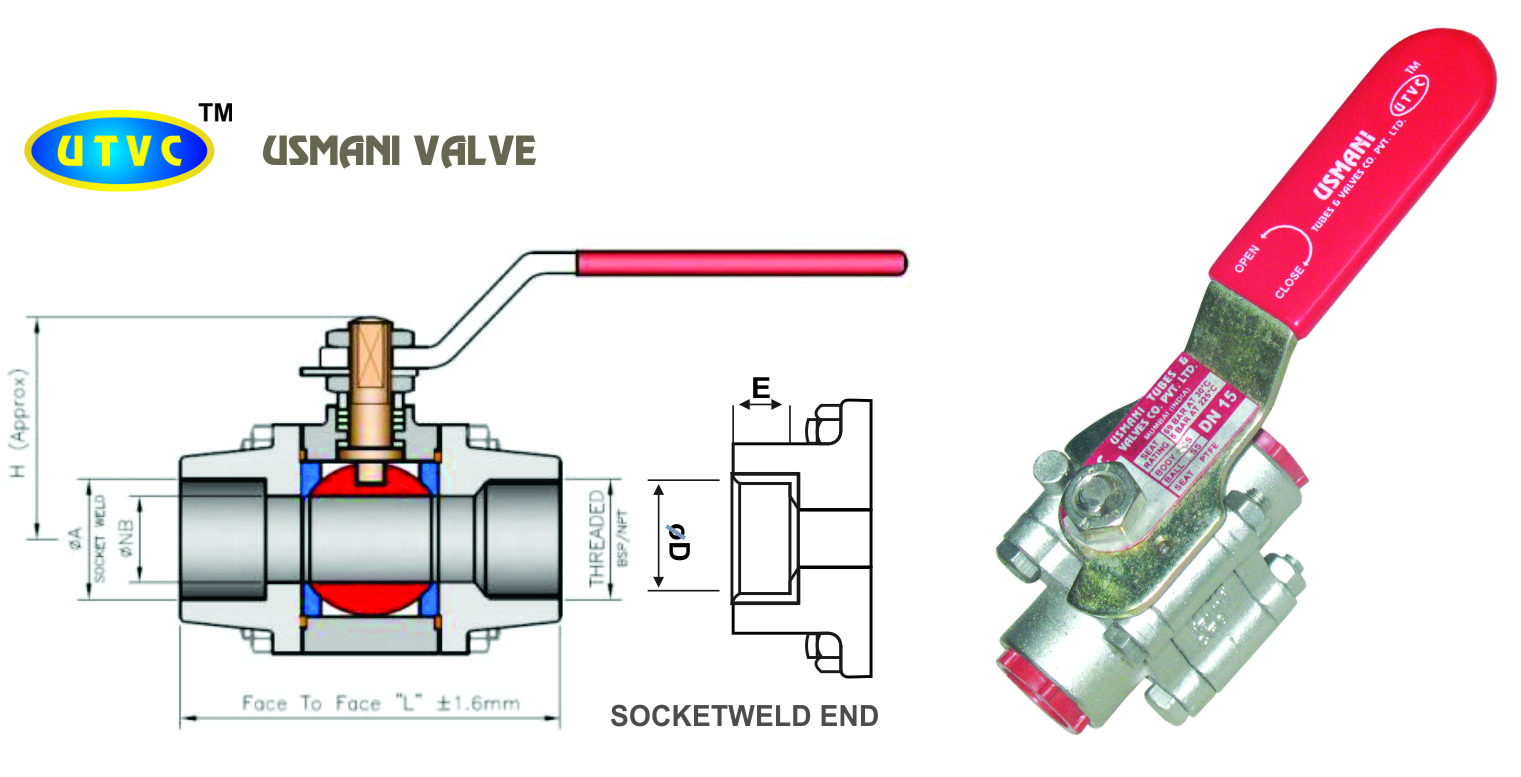

Ball valve Three Piece

Salient Feature

UTVC Ball Valve Three Piece Floating type (investment casting & Forging)

Design Three Piece Ball valve blow out proof stem construction
Material CS ASTM A 216 Gr. WCB, A105, LF2, CF8, CF8M etc.
Ball & trims SS 304, 304L,316,316L
Seat PTFE, GFT, CFT
Action Manual, Leverr
Rating ASA 800,
Ends conn. Screwed ends, Socket weld, but weld
Port Full & Reduce
Mfg. BS 5351/B16.34 /API 6D,API 609/MSS SP 72
Testing API 598 / BS 6755
Application Air, Gas, Water, Chemicals, Pharma, Oil, Acid, Foods, Vacuum, Heat Treatment, Paper & Sugar Industries
