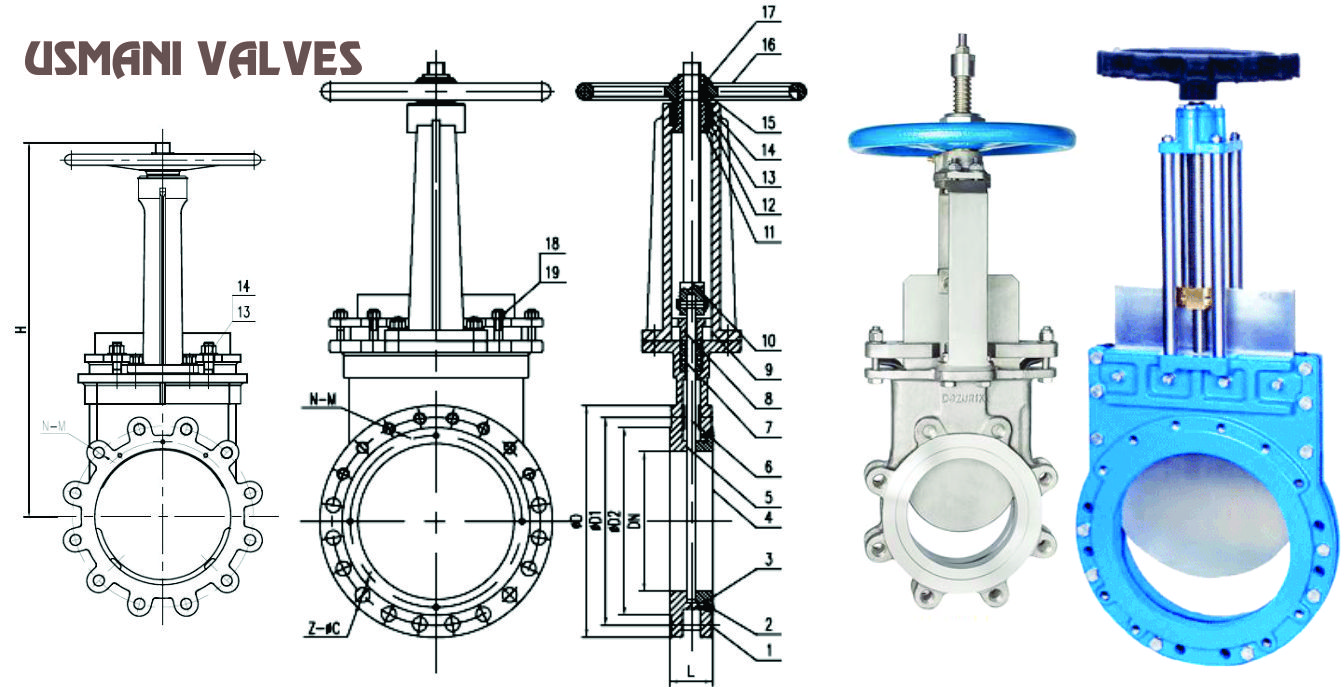

Knife Gate Valve

Salient Feature

We manufacture specific design Knife Edge Gate Valve which is highly demanded in the market and ensures minimum contact between the parts of valve and reduces abrasion. Its most unique feature is its excellent performance. There are various options available on gate, seat and wear ring. The Block edge of the Knife valve allows the tense shut off even if the solid particles settle at the bottom.

The valves are normally used for varied applications like paper and pulp mills, and various powders such as coal, ash, dry and wet powder in power houses, material handling equipment’s and dust collecting systems. These valves are commonly used for liquid slurries and fiber applications and which does not allows leakages.

Our product range covers valves of sizes up to 24” [600mm] and ASME classes up to 150, PN 10 and PN 16. Based on customer requirements, valves in different pressure classes, larger sizes and other materials are also offered. We manufacture this Valve according to MSS SP – 81 designing and manufacturing standards. And these are some of the type of knife gate valve available.

The company manufacturing Full Range of Valves and welcomes you at the website containing full information of Valves with Ranges, Sizes, Material of Construction, Pressure Charts, Connection details, Standard details, Applications, Working fluid & Gases, etc.

  • UTVC Knife Gate Valves are offered with Soft Sealing and Metal to Metal sealing options to suit different working conditions.
  • UTVC Knife Gate Valves are also offered with varied operational options like Hand Wheel, Pneumatic Cylinder, Hydraulic Cylinder, and Electrical Actuator.
  • UTVC Knife Gate Valves are offered in different materials like Cast Iron, S.G. Iron, Cast Carbon Steel, Cast Stainless Steel of all Grades, All Duplex & Super Duplex etc.; Size ranges from 50NB through 600 NB and Pressure Rating in MSS SP-81 150#.
  • Uni-directional Type Knife Gate Valve
  • Bi-Directional Type Knife Gate Valve
  • Square & Rectangle Type Knife Gate Valve
  • Fabricated Type Knife Gate Valve

  • TECHNICAL SPECIFICATION

    Size Range 50 NB through 600 NB
    Pressure Rating MSS SP 81- 150#, PN10, PN16
    Type OS & Y TYPE
    End Connection Wafer, Lugged, Flanged
    Operation Hand Wheel, Gear Box, Pneumatic Cylinder, Electrical Actuator
    Port Opening Full
    Seat Integral/Renewable Metal to Metal or Soft Seating
    Disc Solid Knife type
    Gasket & Packing PTFE, Graphite, Asbestos etc.
    MOC Refer Material Chart
    Design Code MSS SP-81
    Testing MSS SP-81
    Inspection 3rd Party, Client, Manufacturer
