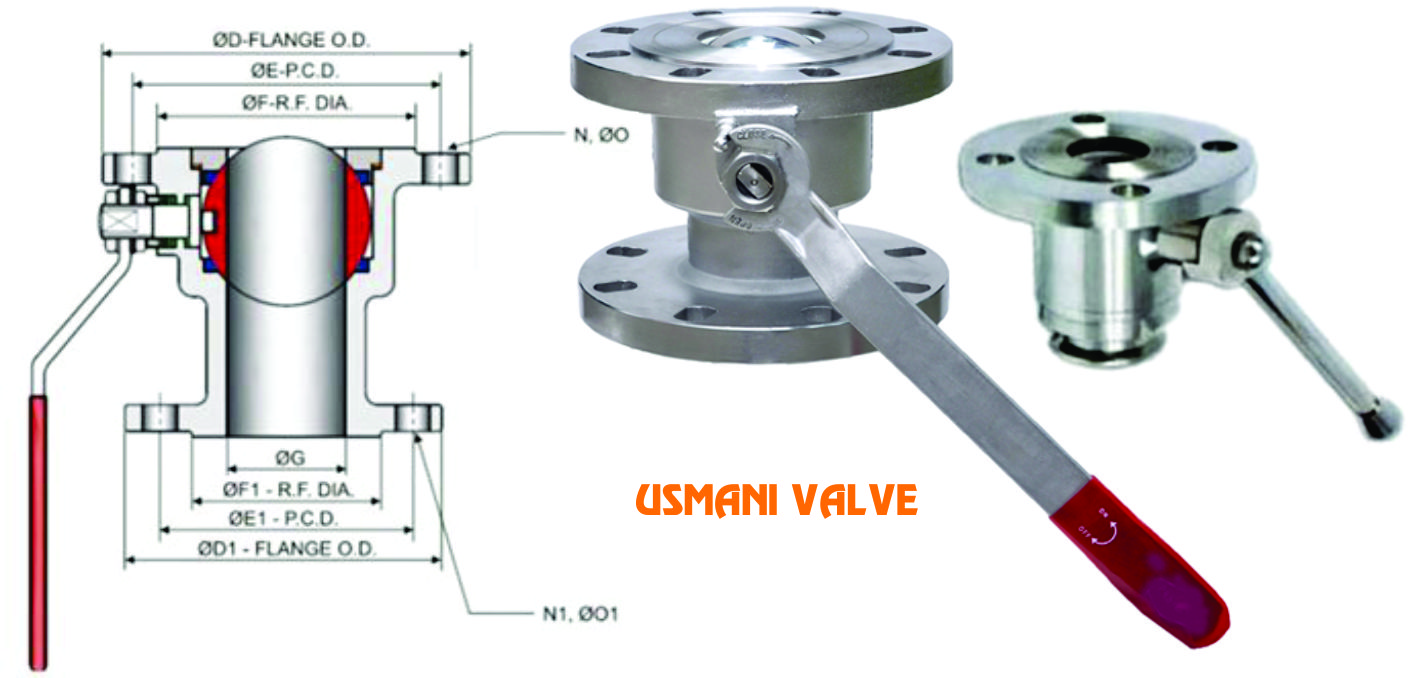

Flush bottom ball valves

Salient Feature

USMANI VALVES Co. offers a range of Ball Type Flush Bottom Ball Valves. USMANI VALVES Ball Valves have been proven in service application for over 20 years USMANI VALVES CO. PVT LTD mfg. High performance Flush Bottom Ball Valve as per international design to get

100% Client Satisfaction and repeat order with total interchangeability, superior quality, workmanship & service.
Generally Flush Bottom Ball Valve body is modified by adding Inlet oversize flanges. As example: 2" x 3" Flush Bottom Ball Valve has the nominal bore of 2" (DN 50), the Inlet flange (Vessel Side) size is 3"(DN 80) and outlet flange size 2”. It allows enough space for bolting clearance & insulation at vessel bottom flange.

Features :
  • Body Type: Single Thin Plate, Short Type
  • Suitable For Horizontal and Vertical Mounting
  • Shorter overall length, mounting requires minimum space
  • Low Pressure Drop
  • Easy to Install
  • Less Weight
  • Size Range: 1” To 10”
  • Pressure Rating: PN 10 / PN 16
  • Seat Leakage: Zero Leakage, Tight Shut Off
  • Temperature Range: -25°C To + 200°C
  • Offer any 3rd Party or Client Inspection

  • Design & Testing International Standard :
    Valve Design: API 6D
    Pressure Testing: API 598
    Leakage Class: Class VI (Zero Leakage)
    Face To Face: ANSI B 16.10
    Mounting Between: ANSI B 16.5 / BS 10 Table / DIN / IS / JIS Standard
