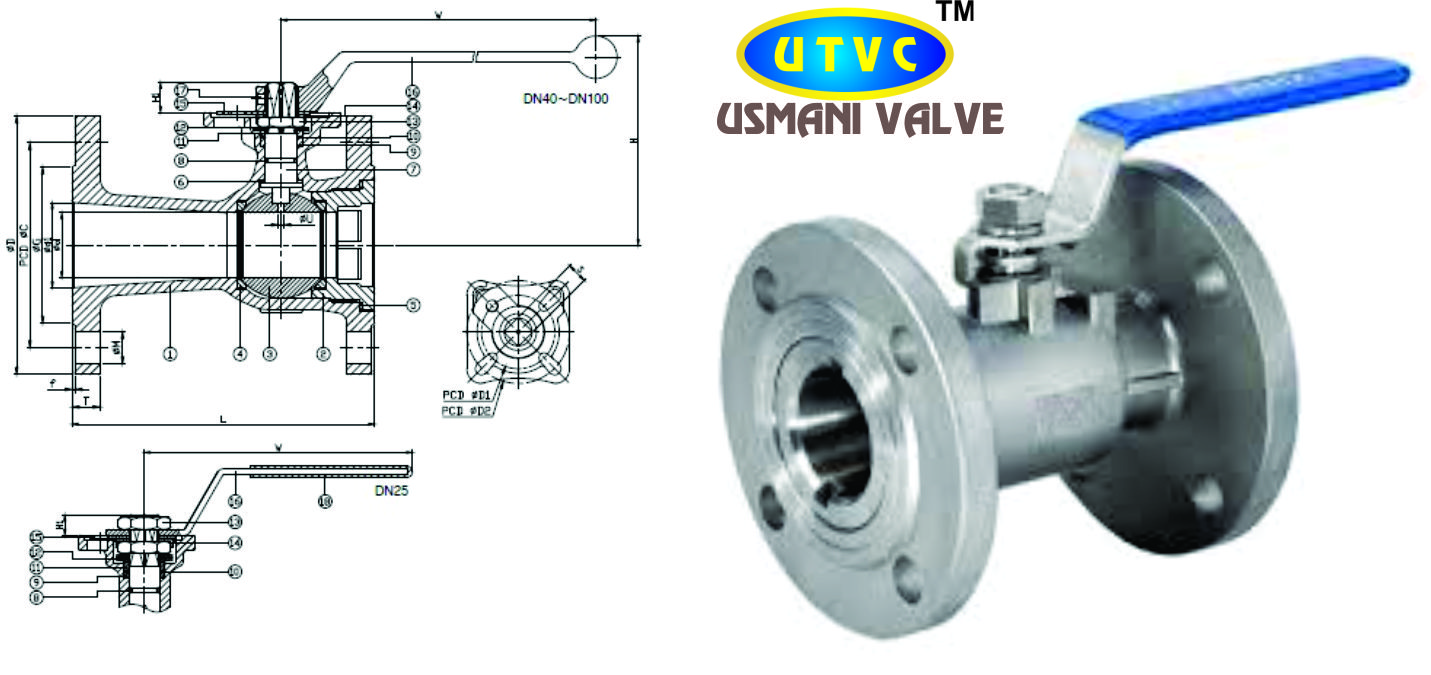

Ball Valve Single Piece Reduce Bore

Salient Feature

UTVC Ball Valve Single Piece flanged end Floating type mounting paid

Design Single Piece Ball valve Fire safe design Reduce bore
Material CS ASTM A 216 Gr. WCB, LCB, LCC, CF8, CF8M etc.
Ball & trims SS 304,304L, 316,316L, monel
Seat PTFE, GFT, CFT
Action Manual, Lever, Gear operated with pneumatic Actuator
Rating ASA 150, 300
Ends conn. Flanged ends but weld
Port Reduce
Mfg. BS 5351/B16.34 /API 6D-ISO 14313/ API 609/MSS SP 72
Testing API 598 / BS 6755
Application Air, Gas, Water, Chemicals, Pharma, Oil, Acid, Foods, Vacuum, Heat Treatment, Paper & Sugar Industries
