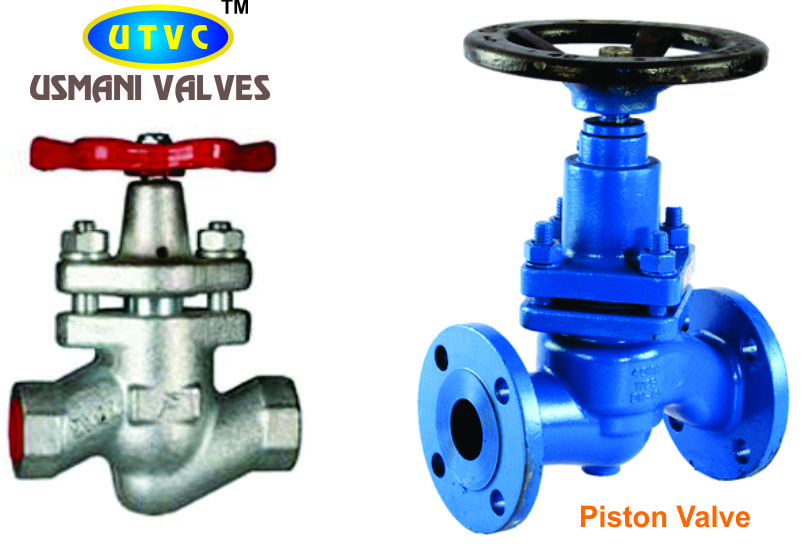

Piston Globe Valve

Salient Feature

Leading Manufacturer of piston valve, flanged end piston valve, flanged end CS piston valve, flanged end cast steel piston valve, screwed end piston valve and screwed end CS piston valve from Mumbai Thane.

We are one of the USMANI and highly recommended distributors of Cast steel screwed end piston valves in the industry. This is one of the most preferred valves which are largely used in the international market too. The feature of these special types of piston valves is:

These are available with zero leak features and hence 100% leak proof

These are gland less as well as seat less too

Cast steel flanged piston valves are available with no erosion feature and this is available with a long life span.

At the time of thermal expansion these valves remains tight.

Being in the industry for so many years we are aware of the expectations of the industrial clients and ready to accept customized orders too. We offer these valves at a very reasonable price. To get price quotations and information on the product we recommend you to connect with us.

Flanged End Piston Valves

The cast carbon piston valve is manufactured to ANSI class 150 & 300 pressure rating. The PC piston valve is a seatless valve. In PC piston valve, seat and gland are replaced by lower and upper sealing rings. The unique design ensures a long life even at high temperature up to 427 deg C.

  • Class 125#/150#
  • The investment cast piston valve is manufactured to class 800 pressure rating.
  • The PC piston valve is a seat less and glandless valve.
  • The inclined bonnet design results in uniform contours and improve flow characteristics. In PC piston valve, seat and gland are replaced by lower and upper sealing rings.
  • The unique design ensures a long life even at high temperature up to 427 deg C
  • Specification:
    Operating Parameters ANSI Class 150

    Max. Working Pressure     As per ANSI class 150
    Max. Working Temp    427 deg. C

    Operating Parameters ANSI Class 300

    Max. Working Pressure     As per ANSI class 300
    Max. Working Temp    427 deg. C

    Operating Parameters ANSI Class 800

    Max. Working Pressure     138 Kg/cm2
    Max. Working Temp    427 deg. C

    Sizes Available : 50 NB, 65 NB, 80 NB, 100 NB, 150 NB, 200 NB.
    End Connections : Flanged ends with ANSI class 150 & 300.
    Options : IBR/ Non-IBR
    MOC : Carbon steel (A216 WCB) with SS Internals.
