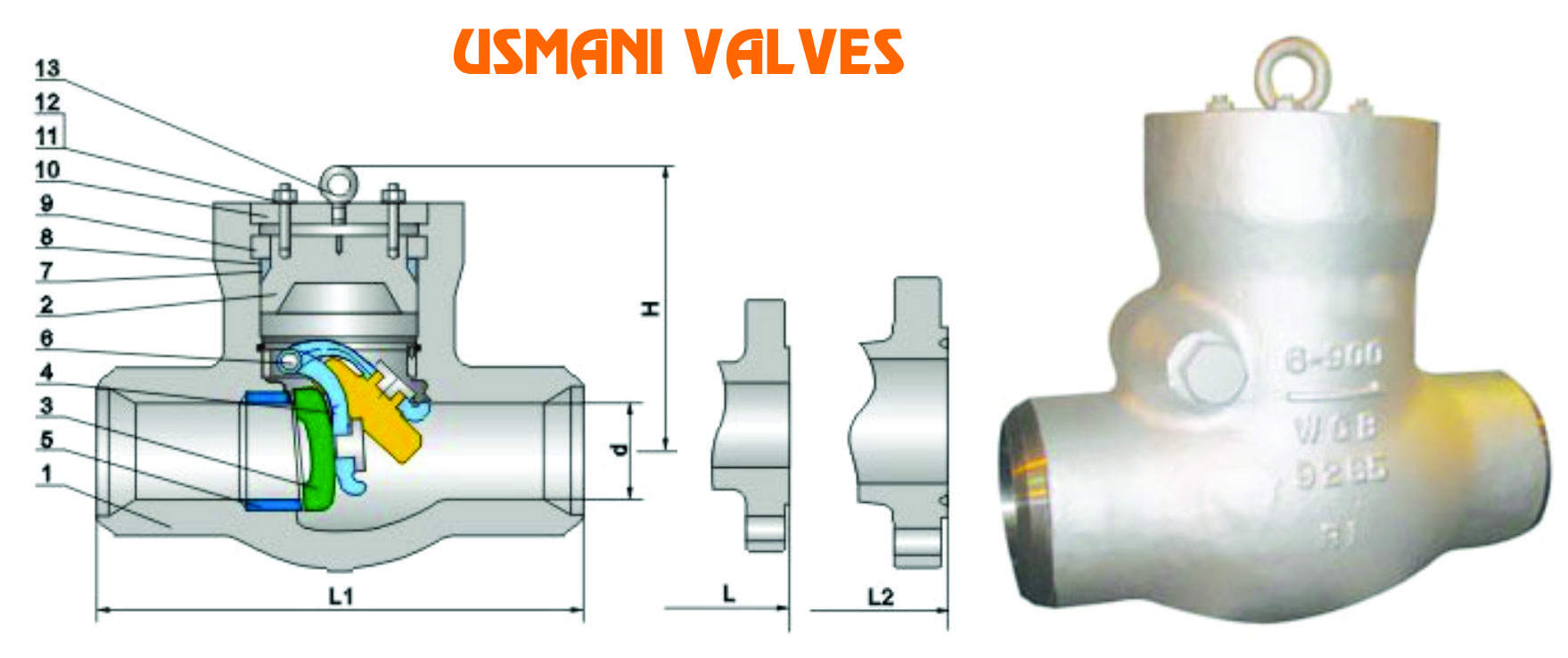

Pressure Seal Check Valve

Salient Feature

The pressure seal valves are designed in accordance with BS1868 and ASME B16.34 for service of high temperature and high pressure and are widely used in fossil fuel power plant. Compared with bolted bonnet joint valves, it provides absolute reliable sealing of the bonnet joint, so that the pressure seal valves are more compact and rigid as well as maintenance cost-effective at high temperature and high pressure service.

It is an automatic valve when it is automatically opened or closed by the force generated by the medium flowing within the pipeline. Its major function is to prevent the backflow of the medium in the pipeline, reverse rotation of the pump and its driving motor, and discharge of the medium in the container.

Design Features

Design standard as per: BS1868,ASME B16.34, GB/T 12235, JB/T3595.
Only one sealing face is designed on the valve body and valve disc,
Full stellite overlay seat sealing surface
Good for manufacturing process and easy to maintain.
Use flexible and woven graphite collaboration type packing.
Absolute bonnet joint leak proof.
Optional by-pass design.
Optional designed with a Damping Cylinder.

Specification:

Design: API / British standard Straight Body and Cover Bolted
Material: CS ASTM A216 Gr. WCB, WC6,WC9,LCB, C12,C5,304,316, etc.
Disc & Seat: CS SS304.304L,SS316,316L,
Trims: F6 SS 304,304L, 316,316L, etc.
Rating: 600#,900#,2500#
Size. 2” to 12”
Ends conn. Flanged end, Butt weld / B16.25,B16.11, B16.5., RF,RTJ,
Mfg. BS 1868 API 600
Testing: API 598 / BS 6755
Working temp.: -29℃~560℃
Application: Oil & Gas, Water, Chemicals, Pharma, Air, Acid, Foods, Vacuum, Heat Treatment, Paper & Sugar Industries, Petrochemical industries
Joint Gasket: CAF/ B8 / Compressed Asbestos Fiber / SS 304 Spire Wounded With Caf
Special Type: With By Pass Arrangement Valve On Request
